Used-300 ANSI Sep Blowcase

Used-300 ANSI Sep Blowcase

  • USED-A
  • Item No. EA0000355
  • Print

Details

Quantity:
1
Status:
USED-A
Unit Type:
Compressor
Location:
Stettler
Listing Date:
21/04/2020

Description

Skid Edge Connections:



     Low Pressure Inlet: 4” 300#

     Low Pressure Outlet: 4” 300#

     High Pressure Inlet: 3” 300#

     High Pressure Outlet: 3” 300#

     3/8” SS Tubing for V-ball control

     3/8” SS Tubing for Pneumatic Signal for High Level Shutdown

     3/8” SS Tubing for Instrument Supply

     1” Liquid Drain





Suction Scrubber:



     30” OD x 54” s/s Horizontal vessel rated @ 350 psig @ 350°F

     Pressure Safety Valve – 1 ½” NPT x 2” NPT set @ 350 psig, G orifice, Sour

     C.R.N registered (AB, BC, SK)

     ABSA compliant

     4” 300# Inlet gas nozzle

     4” 300# outlet gas nozzle

     16”OD Discharge gas boot

          Inlet filtration DPI gauge

          2 Micron coalescing filter

     100% X-Ray

     Stress relieved

     1/8” Corrosion allowance

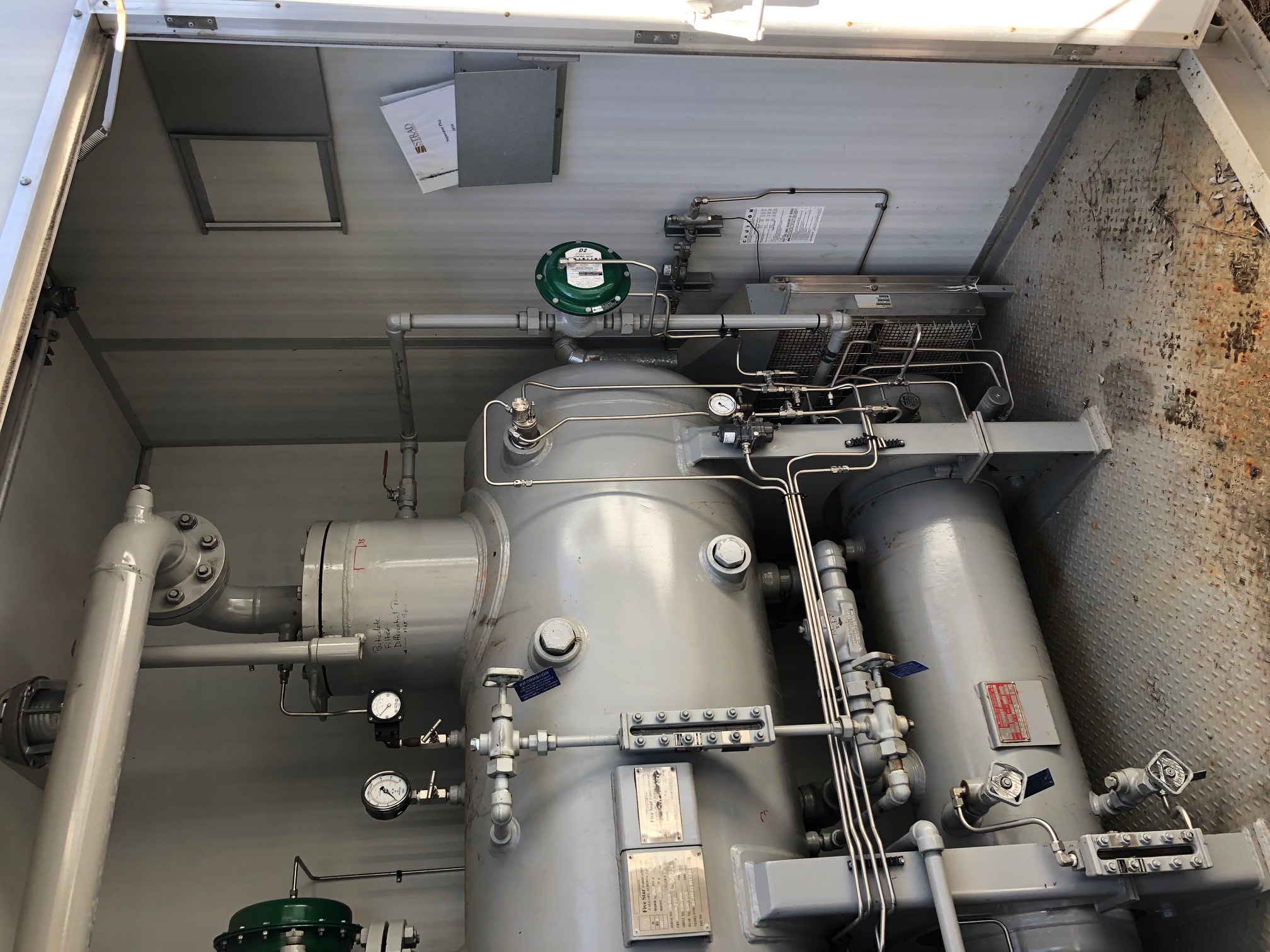

Blowcase Assembly:



Blowcase Vessel:



·       16”OD x 52” s/s Horizontal vessel

·       ABSA compliant life – 1 million dump cycles

·       350 psig @ 350°F

·       Pressure Safety Valve – 1” NPT x 1” NPT set @ 350 psig, E Orifice, Sour

·       CRN (BC, AB, SK) and ABSA compliant

·       100% X-ray

·       1/8” Corrosion allowance

·       Stress relieved

·       Balance Line (to inlet separator)

·       Saddle mounted below inlet separator





Controls / Nozzles:



·       2” 6000# NPT Inlet

·       1” 6000# Power gas inlet nozzle

·       2” 300 ANSI RFWN (Liquid dump outlet c/w internal siphon pipe)

·       2” 6000# NPT (High level control switch)

·       2” 6000# NPT (Low level control switch)

·       1” 6000# Balance line coupling (to inlet separator)

·       Two 3/4” 6000# (Sight glass nozzles c/w sight glass)

·       1” 6000# (Manual drain nozzle)



Piping & Controls:



·       3” 300# V-ball c/w connection point for off skid control

·       3” 300# Globe valve (to induce differential for blowcase function)

·       1” Sch 80 Balance line c/w inline actuated control valve

·       1” D2 Dump valve (balance gas control)

·       2” Sch 80 NPT Dump line (separator to blowcase c/w check valve)

·       2” Sch 80 BW Dump line (blowcase to discharge line c/w check valve)

·       1” Sch 80 Power gas line (upstream of globe valve to blowcase) c/w inline actuated control valve

·       1” D2 Dump valve (Power gas control)

·       AMOT 2-way valve for blowcase cycling

·       2” SOR 1530 Level Switch for upper and lower level control

·       3/8” Instrument gas tubing




Skid:



·       14’ L x 6’-3” W x 8” H

·       C8 x 12 Runners

·       3/16” checker plate floor

·       Floor drain

·       Live roll connection – continuous longitudinal wide flange runners end to end

·       Sandblasted

·       Endura industrial paint finish





Building:



·       12’ L x 6’ W x 8’8” H

·       Insulated thermal panel Vortex building

·       R12 Insulation

·       Sloped Roof for drainage

·       White exterior / interior

·       One double door

o    Weather stripping

o    Check chain

o    Locking and panic hardware

o    24” x 24” windows

·       One 3’ x 3’ sliding window

·       Two 12” x 12” louvered vents

·       Two access panels

·       One 8,000 BTU Catadyne 12” x 24” heater

o    Vent hood

o    Protective grill

o    25’, 12 volt starter cables

o    Pressure regulator

o    Class I, Zone II, Group D, CSA approved

·       One 16,000 BTU Catadyne 24” x 24” heater

o    Vent hood

o    Protective grill

o    25’, 12 volt starter cables

o    Pressure regulator

o    Class I, Zone II, Group D, CSA approved
